Mira FL Pro
Microbial and Platelet Analysis, Accelerated.
Automated Cell Counter
Low / Medium Throughput
Fluorescence
Yeast
Cell Health & Quality Control

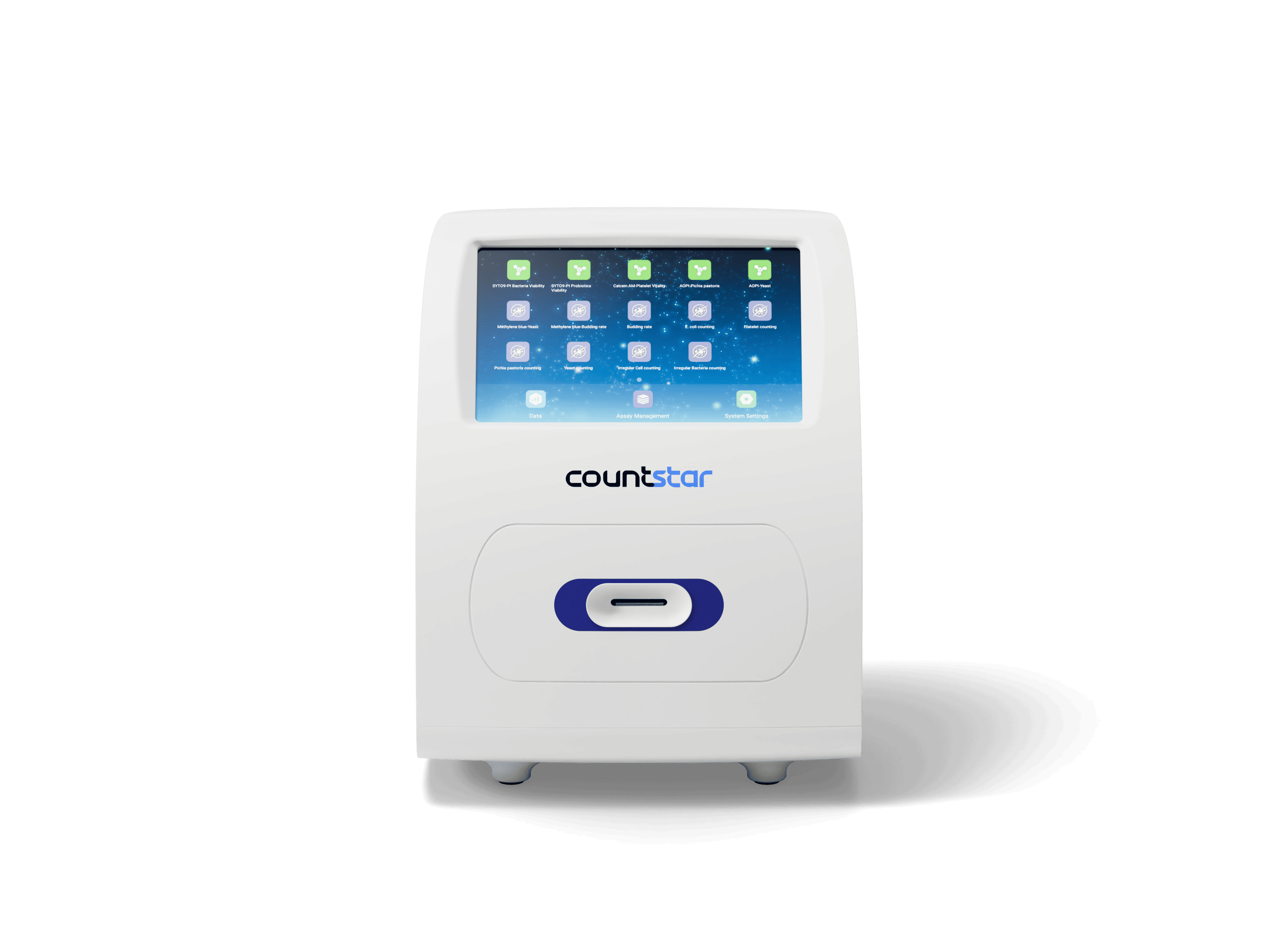

Meet the Countstar Mira FL Pro. An advanced dual-fluorescence cell counter engineered specifically for the uncompromising analysis of yeast, bacteria, and platelets.
Accelerate Microbial & Platelet Analysis
Eliminate the multi-day wait times of traditional CFU assays. The Mira FL Pro combines enhanced 10x optical magnification with dual-fluorescence precision, delivering absolute accuracy for ultra-small microscopic samples. Analyze yeast budding, bacterial viability, and platelet counts in just 60 seconds per sample, empowering real-time monitoring and rapid workflow decisions.
High-Resolution Magnification
Uncover hidden detail and resolve ultra-small cells (optimal for 2-10µm) using advanced 10x optical magnification and an 8.3MP CMOS camera.
Rapid Runtimes
Gain rapid insight by generating accurate, actionable data in just 60 seconds per sample—over 100x faster than traditional multi-day CFU plating methods.
Ultra-Low Sample Volume
Conserve precious samples and preserve highly sensitive or limited source material by utilizing a minimal 6 µL sample volume per run.
Dual-Fluorescence Power
Characterize complex samples instantly by mapping live, dead, and actively budding cells with precise optical channels.
Automated Batch Processing
Streamline specialized workflows and eliminate manual counting bottlenecks by automatically processing up to 5 microbial or platelet samples per batch.
Industry Compliance
Safeguard compliance and secure regulated pipelines with 21 CFR Part 11-ready software, multi-level user privileges, electronic signatures, and automatic audit logs.
Product Details
Engineered for Microscopic Confidence
Deliver definitive clarity for your smallest, most challenging samples. Eliminate multi-day bottlenecks and extract highly precise viability data from bacteria, yeast, and platelets in seconds.
Standardize Bacterial Analysis with Syto9 and PI
Bypass multi-day CFU plating. Characterize live and dead populations in just 60 seconds—over 100x faster than standard methods.
Analysis mask marking live cells (green), dead cells (red), aggregates (white).

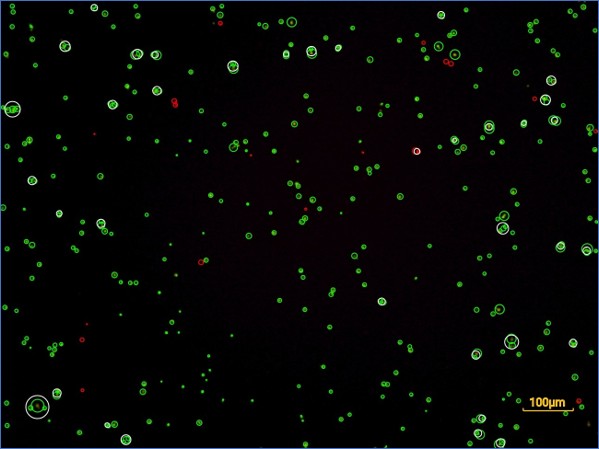

Conquer Yeast Characterization with Methylene Blue and AOPI
Isolate single cells within complex, sticky clusters. Measure exact budding rates and capture detailed distributions of cell diameters.
Analysis mask marking live cells (green), dead cells (red), aggregates (white), budding  yeast cells (blue).
Yeast viability
(Methylene Blue)
Yeast viability
(AOPI)
Budding rate
(Methylene Blue)
Budding rate
(Brightfield)

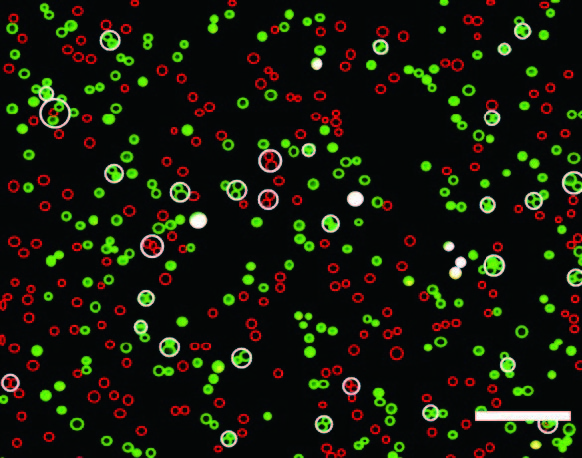

Accelerate Platelet QC with Calcein-AM
Combine brightfield imaging with high-sensitivity fluorescence to reliably detect weak signals and definitively characterize platelet counts and viability.
APPLICATIONS
Built for Specialized Biology
Turn complex microscopic samples into definitive insights across biomanufacturing, commercial fermentation, and therapeutic QC.
Bacterial Biomanufacturing and Synthetic Biology
Accelerate engineered vaccine development and upstream plasmid preparation. Deliver exact density and viability metrics for E. coli to optimize high-density production pipelines.
Industrial Fermentation and Brewing
Standardize propagation across commercial beer, liquor, and vinegar lines. Instantly quantify budding rates and viability for highly clustered Saccharomyces and Pichia cultures.
Therapeutic Component QC
Validate delicate blood fractions and advanced therapies. Leverage high-sensitivity optics to resolve weak signals and generate definitive platelet counts and viability profiles.
Tech Specs
Specifications & related products
Category
Specification
Camera and resolution
8.3MP cooled CMOS color camera
Optical zoom
10x
Fluorescence channels
Ex.: 465-485nm
Em.: 535/40nm; 600nm LP
Cell diameter range
1-60µm (2-10µm optimal)
Concentration range
5x105 – 2x108 cells/mL
Optimal concentration range
(CV < 5%)
2x106 – 1x108 cells/mL
Sample volume
6 µL
Throughput
5 samples/batch
Data export format
pdf, csv, jpg
Internal storage
1TB
HD touchscreen
8 inch, 1280x800 resolution
Dimension
8.66 x11.22 x9.45 inches (24x22x28.5 cms)
Power requirement
110-230V/AC, 50Hz/60Hz
Ready to leave multi-day
CFU plating in the past?
